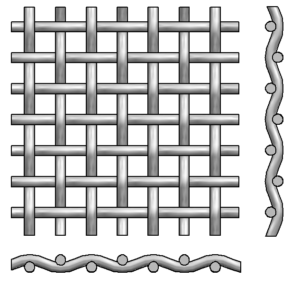

Plain Weave Mesh Pattern

In a plain weave pattern, each weft wire passes alternately over and under the warp wire and vice versa. It is the most widely available pattern and typically incorporates wire of the same diameter in both directions.

Available as standard specifications from 11mm to 50 micron and also from bespoke manufacture, plain weaves are considered to be the most stable mesh form and are used in many applications throughout manufacturing industry.

Plain Weave Standard Square Mesh Specifications

Mesh Count	Warp Size	Aperture (mm)	% Open Area	Approx. kg/m2
2	2.000	10.700	71%	3.97
2	1.600	11.100	76%	2.54
3	2.000	6.467	58%	5.96
3	1.600	6.867	66%	3.82
3	1.400	7.067	70%	2.92
4	2.000	4.350	47%	7.95
4	1.600	4.750	56%	5.09
4	1.200	5.150	66%	2.86
5	1.600	3.480	47%	6.36
5	1.200	3.880	58%	3.58
5	1.000	4.080	65%	2.48
6	1.600	2.633	39%	7.63
6	1.200	3.033	51%	4.29
6	1.000	3.233	58%	2.98
6	0.900	3.333	62%	2.41
6	0.710	3.523	69%	1.50
7	0.900	2.729	57%	2.82
7	0.800	2.829	61%	2.23
7	0.710	2.919	65%	1.75
8	1.600	1.575	22%	10.17
8	1.200	1.975	39%	5.72
8	0.710	2.465	60%	2.00
8	0.630	2.545	64%	1.58
10	0.900	1.640	42%	4.02
10	0.710	1.830	52%	2.50
10	0.600	1.940	58%	1.79
10	0.560	1.980	61%	1.56
10	0.500	2.040	65%	1.24
12	0.800	1.317	39%	3.82
12	0.600	1.517	51%	2.15
12	0.560	1.557	54%	1.87
12	0.450	1.667	62%	1.21
14	0.600	1.214	45%	2.50
14	0.500	1.314	52%	1.74
14	0.450	1.364	57%	1.41
14	0.315	1.499	68%	0.69
16	0.630	0.957	36%	3.15
16	0.560	1.027	42%	2.49
16	0.450	1.138	51%	1.61
16	0.400	1.188	56%	1.27
16	0.355	1.232	60%	1.00
16	0.236	1.352	72%	0.44
18	0.500	0.911	42%	2.24
18	0.400	1.011	51%	1.43
18	0.236	1.175	69%	0.50
18	0.229	1.182	70%	0.47
20	0.560	0.710	31%	3.12
20	0.450	0.820	42%	2.01
20	0.400	0.870	47%	1.59
20	0.355	0.915	52%	1.25
20	0.220	1.060	69%	0.48
22	0.200	0.955	68%	0.44
24	0.450	0.608	33%	2.41
24	0.355	0.703	44%	1.50
24	0.300	0.758	51%	1.07
24	0.200	0.858	66%	0.48
24	0.190	0.868	67%	0.43
26	0.200	0.777	63%	0.52
28	0.355	0.552	37%	1.75
28	0.315	0.592	43%	1.38
30	0.355	0.492	34%	1.88
30	0.315	0.532	39%	1.48
30	0.300	0.547	42%	1.34
30	0.280	0.567	45%	1.17
30	0.165	0.682	65%	0.41
30	0.160	0.687	66%	0.38
32	0.160	0.634	64%	0.41
34	0.165	0.582	61%	0.46
36	0.250	0.456	42%	1.12
36	0.224	0.482	47%	0.90
36	0.160	0.546	60%	0.46
38	0.160	0.500	57%	0.48
38	0.114	0.554	69%	0.25
40	0.250	0.385	37%	1.24
40	0.224	0.411	42%	1.00
40	0.224	0.411	42%	1.00
40	0.190	0.445	49%	0.72
40	0.132	0.503	63%	0.35
44	0.140	0.450	58%	0.43
46	0.160	0.400	51%	0.59
50	0.220	0.288	32%	1.20
50	0.200	0.308	37%	0.99
50	0.190	0.318	39%	0.90
50	0.150	0.358	50%	0.56
52	0.140	0.348	51%	0.51
58	0.114	0.324	55%	0.37
60	0.190	0.233	30%	1.08
60	0.170	0.253	36%	0.86
60	0.165	0.258	37%	0.81
60	0.160	0.263	39%	0.76
60	0.114	0.309	53%	0.39
62	0.112	0.298	53%	0.39
70	0.150	0.213	34%	0.78
70	0.125	0.238	43%	0.54
70	0.100	0.263	52%	0.35
70	0.076	0.287	62%	0.20
74	0.094	0.249	53%	0.32
80	0.140	0.178	31%	0.78
80	0.132	0.186	34%	0.69
80	0.125	0.192	37%	0.62
84	0.090	0.212	49%	0.34
84	0.063	0.239	63%	0.17
88	0.090	0.199	47%	0.35
94	0.090	0.180	44%	0.38
100	0.112	0.142	31%	0.62
100	0.100	0.154	37%	0.50
100	0.090	0.164	42%	0.40
100	0.056	0.198	61%	0.16
105	0.080	0.162	45%	0.33
108	0.075	0.160	46%	0.30
120	0.090	0.122	33%	0.48
120	0.080	0.132	39%	0.38
120	0.063	0.149	49%	0.24
124	0.065	0.140	47%	0.26
130	0.043	0.152	61%	0.12
134	0.065	0.125	43%	0.28
140	0.080	0.101	31%	0.45
145	0.056	0.119	46%	0.23
150	0.071	0.098	34%	0.38
150	0.065	0.104	38%	0.31
150	0.060	0.109	42%	0.27
150	0.034	0.135	64%	0.09
160	0.036	0.123	60%	0.10
165	0.050	0.104	46%	0.20
180	0.060	0.081	33%	0.32
180	0.050	0.091	42%	0.22
180	0.030	0.111	62%	0.08
195	0.040	0.090	48%	0.16
200	0.050	0.077	37%	0.25
200	0.040	0.087	47%	0.16
200	0.028	0.099	61%	0.08
230	0.036	0.074	45%	0.15
230	0.028	0.082	56%	0.09
250	0.040	0.062	37%	0.20
250	0.025	0.077	57%	0.08
270	0.040	0.054	33%	0.21
270	0.036	0.058	38%	0.17
300	0.040	0.045	28%	0.24
300	0.036	0.049	33%	0.19
300	0.030	0.055	42%	0.13
325	0.036	0.042	29%	0.21
325	0.028	0.050	41%	0.13
400	0.025	0.038	37%	0.12
400	0.030	0.034	28%	0.18
500	0.025	0.026	26%	0.16
